📋Block Plan Types

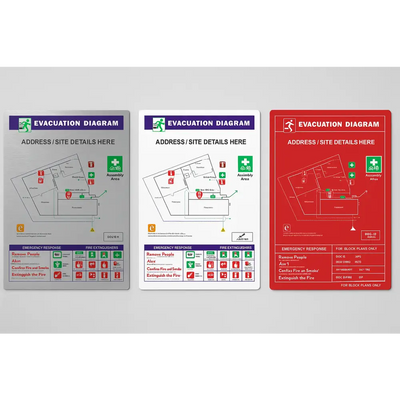

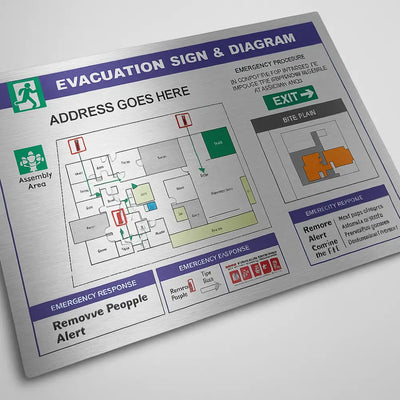

- Evacuation Diagrams — AS 3745
- Fire Hydrant Block Plans — AS 2419.1

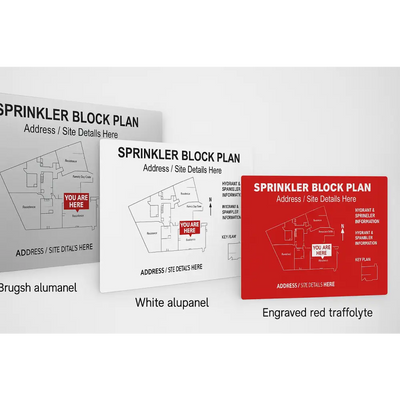

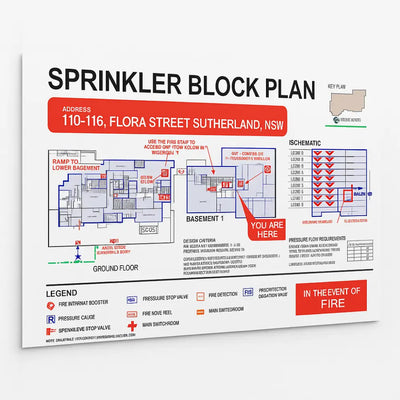

- Fire Sprinkler Block Plans — AS 2118.1

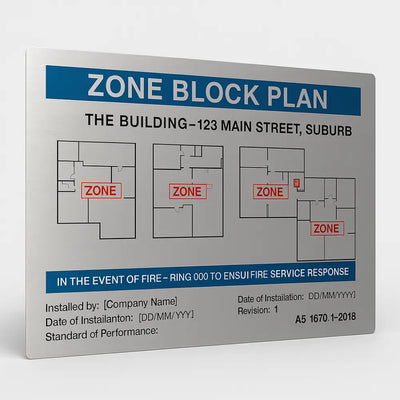

- Fire Alarm / Zone Block Plans — AS 1670.1
🛠Our Services & Support
- ✏️ Design new block plans
- 🖨️ Print supplied artwork
- 📐 Design and print packages
- ♻️ Block Plan Restoration
- 🔄 Update existing plan information
- 🔧 Installation available
⭐Why Choose Us
- ✅ Clear, professional plan layouts
- ⚡ Fast turnaround
- 📦 Multiple material options
- 🚚 Australia-wide delivery
- 🏢 Single and multi-level projects
Already Have a Fire Block Plan?
Restore, update or professionally redraw it
If your existing hydrant, sprinkler, zone or evacuation plan is faded, damaged, difficult to read or no longer reflects the current building information, we can professionally recreate it.
Send us a clear photograph, scan or PDF. We can redraw the existing artwork, update property details, revise labels and equipment locations, and supply a new digital file or printed replacement panel.
- ✅ Restore faded or damaged plans
- ✅ Redraw plans from photographs, scans or PDFs
- ✅ Update addresses, labels and legends
- ✅ Revise equipment and system locations
- ✅ Supply digital artwork or printed replacements
Not sure whether your existing plan can be restored?
Send us the clearest photo or scan available and we will review the condition and complexity before providing a fixed quotation.
Ready to Order a New Fire Block Plan?
Select the appropriate plan from the products below to begin your order. For multiple levels, multiple buildings or complex project requirements, request a tailored quotation.
You can also call us on 1300 744 670 or use our live chat .
Fire and Evacuation Block Plan FAQs
Answers to common questions about designing, updating, printing and restoring fire hydrant, sprinkler, zone and evacuation block plans.
What information do you need to prepare a new block plan?
We generally need the relevant architectural, hydraulic, fire-services or emergency drawings, together with the property address and any project-specific requirements.
Clear PDFs are preferred, but we can also assess marked-up drawings, existing plans, photographs and other available documentation.
Can you create a block plan from an existing PDF drawing?
Yes. We can use suitable PDF drawings as the basis for a new hydrant, sprinkler, fire alarm, zone or evacuation plan.
The quality and completeness of the supplied information can affect the amount of design work required.
Can you restore a faded or damaged fire block plan?
Yes. We can professionally redraw many faded, damaged or difficult-to-read plans from a clear photograph, scan, PDF or existing artwork.
Visit our Fire Block Plan Restoration and Redrawing service to see how the process works.
Can you update an existing plan after building changes?
Yes. We can update addresses, building names, legends, labels, floor layouts and fire-service locations based on the current information and approved documentation you provide.
Changes to equipment locations or fire-service layouts should be confirmed against current project or as-built documentation before production.
Do you offer design-only and print-only services?
Yes. Depending on the plan type, you can order digital artwork only, printing from suitable supplied artwork, or a complete design-and-print package.
We can also quote for several plans, multiple levels or complete building packages.
What materials are available for printed block plans?
Available finishes may include white Alupanel, brushed aluminium and engraved Traffolyte, depending on the plan type and project requirements.
The relevant product page shows the material and size options available for that particular plan.
Can you prepare plans for several levels or buildings?
Yes. We regularly quote for multi-level buildings, strata properties, commercial developments and projects requiring several hydrant, sprinkler, zone or evacuation plans.
For several plans, use our project quote form and upload the available drawings or plan schedule.
Do you provide block plan installation?
Installation may be available depending on the project location, quantity, access requirements and scope of work.
Include the installation address and number of plans in your enquiry so that we can review the requirements.
How long does block plan production take?
Turnaround depends on the plan type, drawing quality, number of plans, revisions required and selected material.
We will advise the expected timeframe after reviewing the supplied documents and project scope.
Will I receive a proof before the plan is printed?
For design and restoration work, a digital proof is generally supplied for review before final production.
The customer is responsible for checking property details, labels, equipment locations and other project information shown on the proof.
Still unsure which block plan you need?
Send us your drawings, existing plan or project information. We can review the available files and advise whether you should order online or request tailored project pricing.
