Fire Alarm & Zone Block Plans – AS 1670.1
Clear alarm-zone layouts and control-panel references prepared from your current fire detection drawings, zone information and project requirements.
🖨️ Print only
Supply finished, print-ready artwork. Choose a material and A3 or A2 size.
📐 Design only
Digital artwork at $200 + GST per plan, in A3 or A2. No printed panel or delivery charge.
✏️ Design & Print
We prepare artwork from your drawings, provide a proof for review, then produce your selected panel.
Configure your fire alarm & zone block plans
Use the visual product options to select your service and size, view available finishes and upload your files.
Files, proof and artwork approval
For Print only, upload your finished artwork. For Design only or Design & Print, upload source drawings and any marked-up changes. Include the site address and plan-specific information. Check all project details on your proof before approving it. Final digital artwork is released after full payment.
Materials and sizes

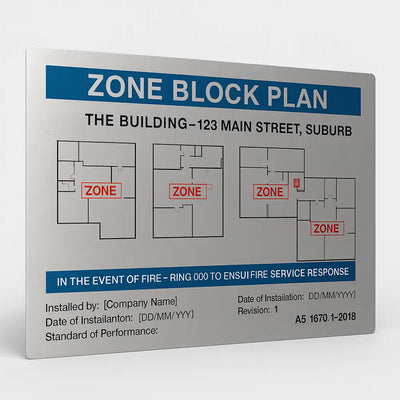

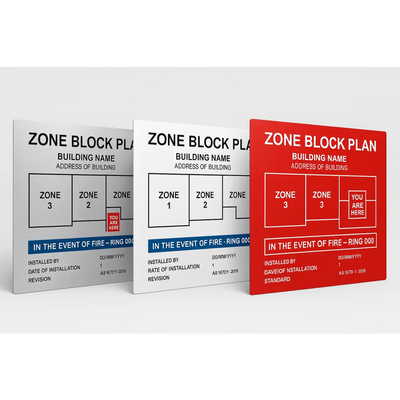

Online sizes: A3 (297 × 420 mm) and A2 (420 × 594 mm). White Alupanel, silver brushed Alupanel and silver brushed aluminium. Engraved Traffolyte is also available, with white/black, black/white, red/white or white/red background/lettering combinations. Other colours can be requested, subject to availability confirmation. Material and colour selections apply to printed or engraved panels; Design only supplies digital artwork.
For other sizes or finishes, request a quote before ordering.
Several plans, changes or installation?
For different levels, multiple buildings, complex drawings or installation, request a project quote. Installation and turnaround are confirmed against the project scope. For faded or damaged originals, use our restoration and redrawing service.
