  • Works Zone Sign with Times - 225 x 450 mm

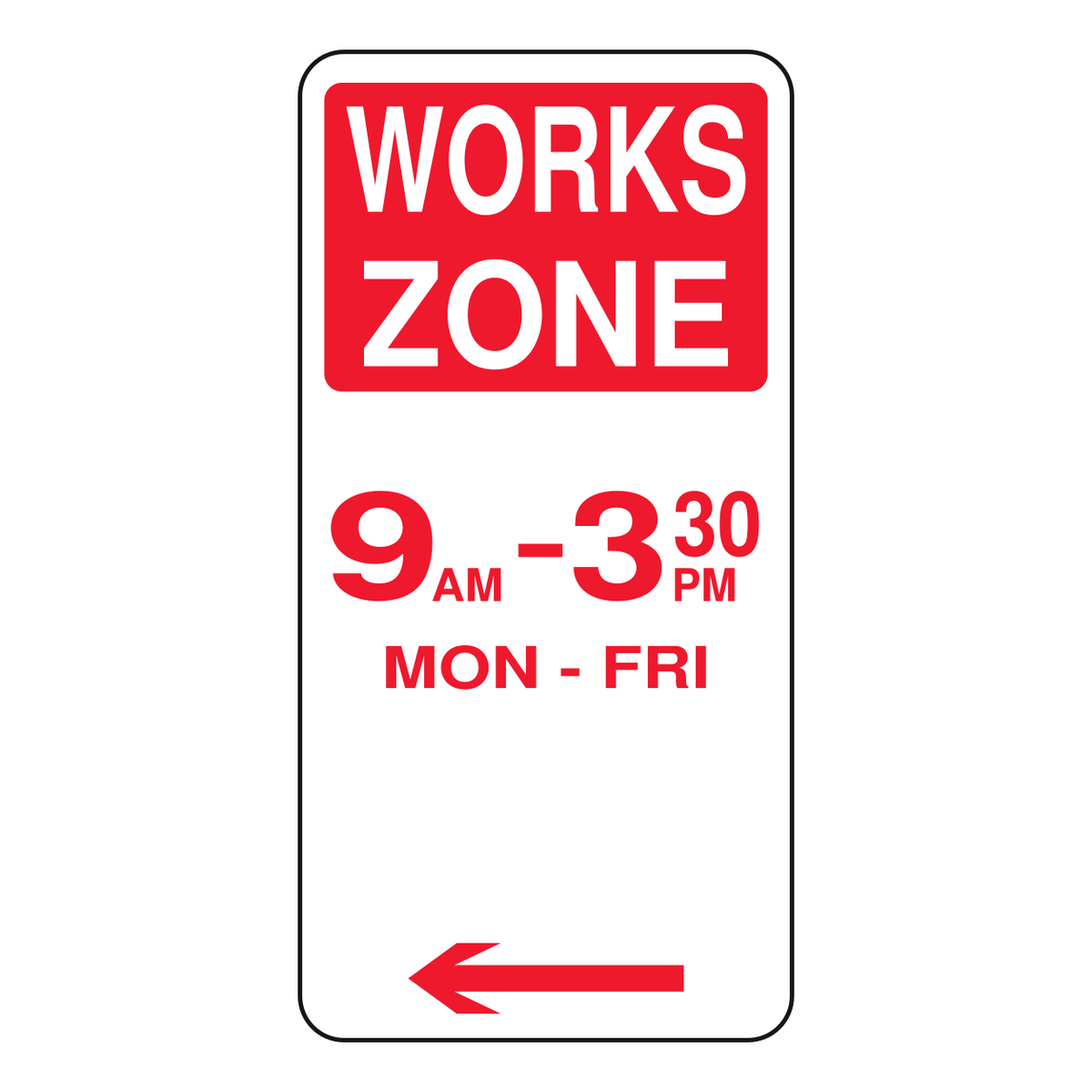

Works Zone sign with times 225 x 450 mm — left arrow

Works Zone Sign with Times - 225 x 450 mm

Selected items total

Prices shown exclude GST. Delivery is additional.

SKU:

Shown: 9 am–3:30 pm Monday–Friday. Changing the arrow keeps these times unchanged.

For 50 NB posts (approximately 60.3 mm outside diameter). Back-to-back panels must have matching sizes and mounting holes. Quantity applies to complete selected setups.

Your selected sign and accessories will be added as separate cart lines. Please review their quantities in your cart.

Made to order. A white WORKS ZONE heading on red, with red operating times and an arrow on white. Choose left, right or both directions.

Sign specification

  • 225 mm wide × 450 mm high.
  • 1.6 mm solid aluminium with a white face, applied graphics and 20 mm radius corners.
  • WORKS ZONE wording stays fixed.

Arrow and times

Select your arrow direction. All arrow choices use the same layout and standard times: 9 am–3:30 pm Monday–Friday. Changing the arrow does not change the times.

To change the times, select Enter my own times and complete the day/time row. The image remains a standard example. A separate artwork proof needs your approval before production.

Mounting and delivery

Signs and mounting hardware are separate items. Hardware is optional. A TD1 set contains two brackets for one panel; a TD2 set contains two brackets for two matching panels mounted back-to-back. Back-to-back panels must have matching sizes and mounting holes.

New-post setups require a quote for the selected signs, one bracket set, one 3.2 m or 3.6 m post and one cap per setup, plus freight or collection. Quantity applies to complete selected setups. Posts are 50 NB, approximately 60.3 mm outside diameter. Installation, footings and concrete are excluded.

For other layouts, send your requirements for a quote. Road-authority projects require the applicable specification. Delivery is additional.

Operating hours

The printed hours show when the works-zone restriction applies. Confirm the approved arrangement for your site with the relevant authority before ordering. Confirm the required schedule and arrow direction for your location. Untimed, no-arrow, split-period or other wording layouts require a separate quote.

Choose your finish

Choose non-reflective, Class 2 reflective (+$15 per sign) or Class 1 reflective (+$25 per sign). Finish upgrades apply to both standard and custom times. Prices exclude GST. For a back-to-back setup, choose the finish for each sign separately.
